Compact Switches

The term „Compact Switch“ ML (as Main switch or Emergency-off switch) is common practice in the industry and describes a design of disconnect switches. It is about On-Off switches arranged for switchboard installation. In the majority of cases the switches are drafted for snap-on DIN rail mounting, base mounting or front mounting in the door. The terminal screws are all accessible from one side and are situated in line of the conduct. The Compact Switches are classified in 3 groups starting with the basic series ML0 with applications from 25A to 32A. The well proven series ML1 to ML3 from 16A up to 125A and the high-performance series ML4- ML7 from 125A to 630A. The technical details of these series are listed in the following pages.

Benefits

  • Very fast shut off time
  • Maintenance free
  • Open and enclosed version
  • ML4 - ML7 with CE markin
  • Customized solutions on request
  • ML0 - ML 3 according to IEC 60947 and UL508
  • Robust and modular construction
  • Very compact design
  • High quality contacts for a long lifetime

SPECIFICATIONS

Short overview specifications

  Unit from to
Rated operating current Ie AC-21A A 25 630
Rated voltage Ue V 690 -
Rated uninterrupted current (open) Iu =Ith A 25 630
Conventional enclosed thermal current Ithe A 25 -
Rated insulation voltage Ui Insulation group C under VDE 0110 V 690 1000
show more technical data
Making breaking Capacity   Unit From to
AC-3 Service Category
Motor switch for optional switching 230 V 3~ kW 5
Motor switch for optional switching 400 V 3~ kW 7,5
Motor switch for optional switching 690 V 3~ kW 9,5

AC-23A(B) Service Category
Motor switch 230 V 3~ kW 5/- -/-
Main switch 400 V 3~ kW 7,5/- 280/280
Maintenance switch 690 V 3~ kW 9/- 150/185

AC-22A(B) Service Category
Motor switch 230 V 3~ kW 25/- -/-
Motor switch 400 V 3~ kW 25/- 630/630
Motor switch 690 V 3~ kW 25/- 315/315

3D View

The term „Compact Switch“ is common practice in the industry and describes a design of disconnect switches. These are On-Off switches of the ML0 - ML7 series from 16A - 630A, arranged for switchboard installation.

3D-Model: ML2-063-E-2051U with lock ring

Click on the image to activate the 3D view. You can move the model by dragging it with the mouse.

DESIGN

Design Front Mounting
Design Base Mounting
Design Wall Mounting Enclosed

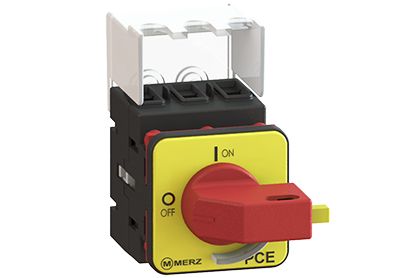

Design Front Mounting

2/4-hole mounting with lockout handle for 3 padlocks

optional with terminal cover

Design Front Mounting

2/4-hole mounting with front plate and lockout handle for 1 or 2 padlocks

optional with terminal cover

Design Front Mounting

2/4-hole mounting with front plate without lockout handle

Design Front Mounting

2/4-hole mounting with front plate without lockout handle

Design Front Mounting

Central mounting 22,5 and 30,5 mm with front ring without front plate

Design Front Mounting

with 4-hole mounting and front plate

bk/si

Design Front Mounting

with 4-hole mounting and front plate

rd/ye

Design Front Mounting

with 4-hole mounting with lockout handle for 1- 3 padlocks

bk/gr

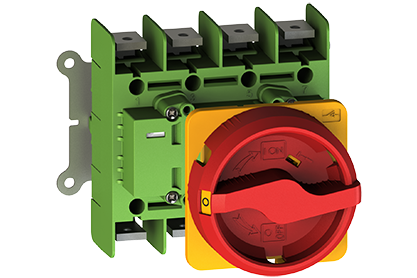

Design Front Mounting

with 4-hole mounting with lockout handle for 1- 3 padlocks

rd/ye

Design Base Mounting

Door coupling and door interlock with lockout handle for 3 padlocks

optional with terminal cover

Design Base Mounting

Door coupling and door interlock with lockout handle for 3 padlocks

optional with terminal cover

Design Base Mounting

Door coupling and door interlock with lockout handle for 1 or 2 padlocks

Design Base Mounting

Door coupling and door interlock with front plate without lockout handle

Design Base Mounting

Distribution board mounting with front plate and lockout handle for 1 or 2 padlocks

Design Base Mounting

Distribution board mounting with front plate without lockout handle

Design Base Mounting

with 4-hole mounting and front plate

bk/si

Design Base Mounting

with 4-hole mounting and front plate

rd/ye

Design Base Mounting

with cover coupling and lockout handle for 1 - 3 padlocks

rd/ye

Design Base Mounting

with 4-hole mounting and lockout handle for 1 - 3 padlocks

bk/gr

Design Base Mounting

with door coupling and lockout handle for 1 - 3 padlocks

rd/ye

Design Wall Mounting Enclosed Series "89"

8900 red/yellow

with lockout handle for 3 padlocks

Design Wall Mounting Enclosed Series "89"

8901 black/grey

with lockout handle for 3 padlocks

Design Wall Mounting Enclosed Series "89"

8920 red/yellow

with lockout handle for 3 padlocks

Design Wall Mounting Enclosed Series "89"

8921 black/grey

with lockout handle for 1 - 3 padlocks

Design Wall Mounting Enclosed Series "89"

8940 red/yellow

with lockout handle for 1 - 3 padlocks

Design Wall Mounting Enclosed Series "89"

8941 black/grey

with lockout handle for 1 - 3 padlocks

Design Wall Mounting Enclosed Series "89"

8960 red/yellow

with lockout handle for 1 - 3 padlocks

Design Wall Mounting Enclosed Series "89"

8961 black/grey

with lockout handle for 1 - 3 padlocks

Design Wall Mounting Enclosed Series "89"

8980 red/yellow

with lockout handle for 1 - 3 padlocks

Design Wall Mounting Enclosed Series "89"

8981 black/grey

with lockout handle for 1 - 3 padlocks

Design Wall Mounting Enclosed Series "81" for ML0/ML1

8101/8121 black/grey

with lockout handle for 1 or 2 padlocks

Design Wall Mounting Enclosed Series "81" for ML0/ML1

8100/8120 red/yellow

with lockout handle for 1 or 2 padlocks

Design Wall Mounting Enclosed Series "81" for ML0/ML1

8101/8121 black/grey

with lockout handle for 1 - 3 padlocks

Design Wall Mounting Enclosed Series "81" for ML0/ML1

8100/8120 red/yellow

with lockout handle for 1 - 3 padlocks

Design Wall Mounting Enclosed Series "I9N" for ML40

I9N red/yellow

Cover coupling with front plate

Design Wall Mounting Enclosed Series "I9N" for ML40

I9N schwarz/gr

Cover coupling with lockout handle for 1 - 3 padlocks



Design Wall Mounting Enclosed Series "AL"

AL 2-5 red/yellow - UL50E approved

in Aluminium enclosure with lockout handle for 3 padlocks

Design Wall Mounting Enclosed Series "AL"

AL 2-5 black/grey - UL50E approved

in Aluminium enclosure with lockout handle for 3 padlocks

Design Wall Mounting Enclosed Series "AL"

AL 2-5 black/grey with metal lock ring

in Aluminium enclosure with lockout handle for 3 padlocks

Design Wall Mounting Enclosed Series "99"

9966 black/grey - UL50E approved - NEMA Type 4X

with lockout handle for 3 padlocks

Design Wall Mounting Enclosed Series "99"

9966 red/yellow - UL50E approved - NEMA Type 4X

with lockout handle for 3 padlocks

Design Wall Mounting Enclosed Series "99"

9968 black/grey - UL50E approved - NEMA Type 4X

with lockout handle for 3 padlocks

Design Wall Mounting Enclosed Series "99"

9968 red/yellow - UL50E approved - NEMA Type 4X

with lockout handle for 3 padlocks
